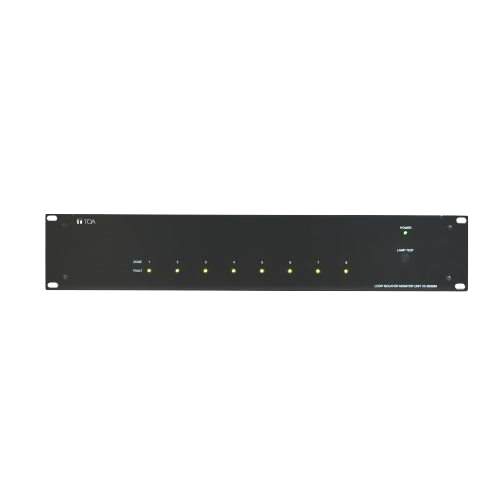

VX-3000IM

Loop-Isolator Monitor

Der Isolatormonitor VX-3000IM-EB dient zur Überwachung von 8 Lautsprecherschleifen, die mit den Isolatoren VM-300IS-EB ausgestattet sind. Normalerweise, wenn kein Fehler vorliegt, sendet er das Audiosignal in den Anfang der Schleife. Im Falle eines Kurzschlusses auf der Lautsprecherleitung isolieren die Isolatoren das defekte Teil der Leitung vom Rest der Ringleitung. Dann sendet der Isolatormonitor VX-3000IM-EB das Audiosignal in beide Seiten der Schleife. Er zeigt die defekte Leitung durch eine LED auf der Frontseite an und gibt die Leitungsstörung durch ein Steuerausgangssignal an den VX-3000F. Durch diese Technik wird die Übertragung bei einer einzelnen Störung der Lautsprecherleitung auf keinem Lautsprecher unterbrochen, d.h. alle Lautsprecher bleiben hörbar! Es besteht somit keine Notwendigkeit mehr, zwei Lautsprecher auf zwei Leitungen zu installieren, wenn ein Lautsprecher ausreicht.


  • Vollständige Wiederherstellung der Lautsprecherübertragung im Falle einer einzelnen Störung in der Lautsprecherleitung (Kurzschluss, Unterbrechung)

  • Für 8 Kanäle / Ringleitungen

  • Bis zu 60 Isolatoren pro Schleife

  • Statusanzeige für jeden Kanal

  • 19-Zoll-Gerät mit 2 HE





  • Spezifikation

  • VX-3000IM

    Spannungsversorgung

    31 V DC

    Stromaufnahme (Wert)

    0,38 A

    Steuerausgänge

    8 via RJ45 jack

    Einsetzbar mit

    VM-300IS-EB

    Eingang / Ausgang

    8 channels, each 1 zone input into 2 loop outputs

    Anzeigen

    Power x1, status (OK, fault) by 2-colour-LED per loop x8

    Anschluss

    16 removable screw terminals 4 pins, 1 removable screw terminals 2 pins, 1 RJ45 jack

    Stromaufnahme

    0.38 A

    Audioeingang

    max. 150 watts per channel

    Audioausgang

    max. 150 watts per channel

    Max. Luftfeuchtigkeit (im Betrieb)

    10 -90 %

    Betriebstemperatur

    -5°C - +40°C

    Ausführung

    Stahlblechplatte, schwarz

    Abmessungen

    483 x 88.4 x 345 mm (B x H x T)

    Gewicht

    15.4 kg

  • Ausschreibungstext
  • Ausschreibungstext zum Produkt:

    Loop-isolator-manager VX-3000IM-EB for 8 speaker line loops. The loop-isolator-monitor provides a DC voltage for the isolators VM-300IS-EB on the loop and separates the DC voltage from the power amplifiers. When it detects a failure on the speaker line with isolators, where all speakers are connected to the isolators, then it activates broadcasting the speaker signal into the end of the speaker line loop so that no short circuit or break of the speaker line between the isolators VM-300IS-EB causes any broadcast loss. A 2-colour LED for each channel indicates the proper operation is green and a fault in yellow. Each channel has a capacity of 150 watts, and several channels can be linked for a higher power. The unit is in a 19-inch, 2 U enclosure for cabinet rack mounting. The unit is certified on EN 54-16 with the VX-3000 system.
