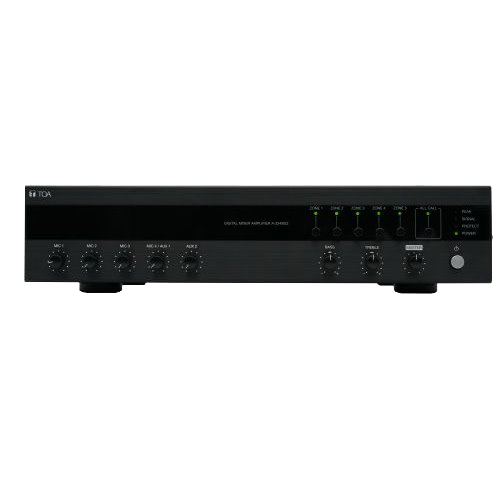

Digitaler Mischverstärker
• Available in 240W to suit any applications
• High Impedance / Low Impedance selector
• Zones selector for selecting 5 zones simultaneously
• 5 inputs, 2 AUX, 1 REC out
• Priority Control Input
• Phantom Power
A-3224DZ | |||
Spannungsversorgung | 100 - 240 V AC, 50 / 60 Hz | 100 - 240 V AC, 50 / 60 Hz | 100 - 240 V AC, 50 / 60 Hz |
Nennausgangsleistung | 240 W | 480 W | 120 W |
Frequenzbereich | 50 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 20 kHz |
Leistungsaufnahme | 62 W (AC operation at 1/8 maximum output without clip) | 99 W (AC operation at 1/8 maximum output without clip) | 44 W (AC operation at 1/8 maximum output without clip) |
Fremdspannungsabstand | 60 dB | 60 dB | 60 dB |
Anzahl Kanäle | 5 | 5 | 5 |
Anschließbare Mikrofone | 4 | 4 | 4 |
Eingänge | MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block | MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block | MIC 1 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to RJ45 MIC 2-3 : 1 mV (-60dB*), 600 Ω, balanced, phone jack MIC 4 : 1 mV (-60dB*), 600 Ω, balanced, phone jack, selectable to AUX 1 AUX 1 : 100 mV(-20dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4 AUX 2 : 100 mV(-20dBc), 10 kΩ, unbalanced, RCA pin jack PRIORITY : 0 dB*, 600 Ω, unbalanced removable terminal block |
Steuereingänge | Priority Control Input, removable terminal block | Priority Control Input, removable terminal block | Priority Control Input, removable terminal block |
Ausgänge | Speaker Output : in screw type terminal Direct Line (selectable) : 42 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack | Speaker Output : in screw type terminal Direct Line (selectable) : 21 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack | Speaker Output : in screw type terminal Direct Line (selectable) : 83 Ω (100V) or 4 Ω Zone Selection : 5 zones simultaneously selectable Rec Out : 0 dB*, 600 Ω, unbalanced, RCA pin jack |
Betriebstemperatur | 0°C to +40°C (32°F to 104°F) | 0°C to +40°C (32°F to 104°F) | 0°C to +40°C (32°F to 104°F) |
Ausführung | ABS-Kunststoff, Stahlblechplatte, schwarz | ABS-Kunststoff, Stahlblechplatte, schwarz | ABS-Kunststoff, Stahlblechplatte, schwarz |
Abmessungen | 420 x 100.9 x 357 mm (B x H x T) | 420 x 100.9 x 357 mm (B x H x T) | 420 x 100.9 x 357 mm (B x H x T) |
Gewicht | 4.9 kg | 5 kg | 4.6 kg |
Zubehör (enthalten) | Removable terminal plug (2 pins) x7 | Removable terminal plug (2 pins) x7 | Removable terminal plug (2 pins) x7 |
Ausschreibungstext zum Produkt:
The mixer power amplifier shall operate on AC mains power, and shall control and mix 4 balanced (4 phone jack inputs, one selectable to RJ45 chime input and one selectable to AUX 1) MIC, 2 unbalanced (RCA pin jack) AUX inputs and one PRIORITY input (unbalanced removable terminal block).
Speaker outputs shall be 5 in screw type terminal for 100V operation (83Ω impedance), selectable Direct Line (83Ω (100V) or 4Ω) and 600Ω, unbalanced REC out (RCA pin jack).
The amplifier shall meet the following performance criteria: Power output shall be 240 W at less than 1% THD (at 1 kHz, 1/3 rated power). Frequency response shall be 50 Hz to 20 kHz (+/-3 dB), with an S/N ratio of over 60 dB. Muting (of other input signals by 0 – 30 dB attenuation) shall be available for MIC 1. Bass Tone Control shall be +/-10 dB at 100 Hz, and Treble Tone Control shall be +/-10 dB at 10 kHz. Power, signal, peak and protect indicators shall be provided. The panel shall be ABS black resin, and the case black steel plate. Dimensions shall be 420 (W) x 100.9 (H) x 357 (D) mm and weight is 4.9 kg.
The mixer power amplifier shall be TOA model A-3224DZ.
 |  |  |
